01. Detail Information
상세정보

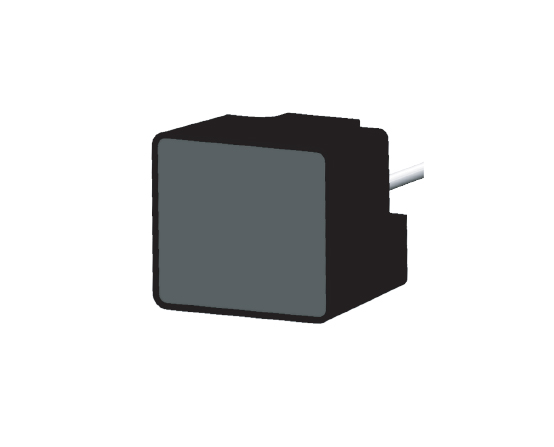

Product
CGS-MF
Category

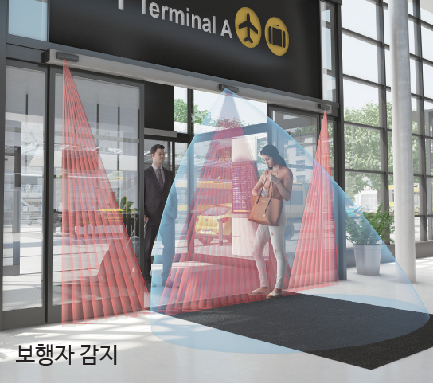

보행자 감지
Type
Microwave Doppler Radar

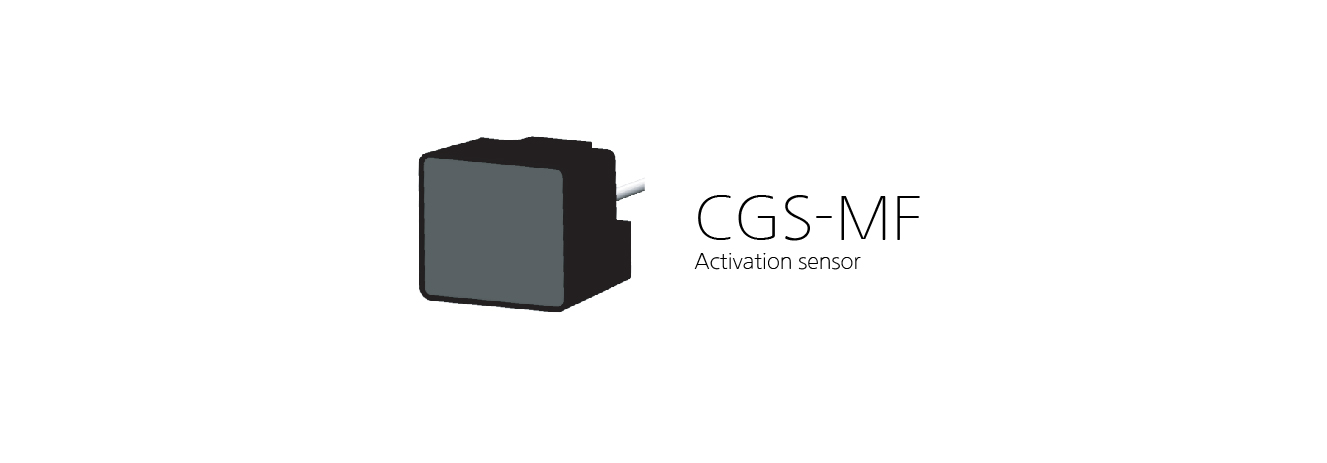

Detail View
제품 상세 이미지
Specification
주요 스펙
- Technology:
- microwave
- Transmitter frequency
- 24.150
- Transmitter radiated power
- < 20 dBm EIRP
- Transmitter power density:
- < 5 mW/cm2
- Detection mode:
- motion
- Min. detection speed:
- 5 cm/s (measured in sensor axis)
- Supply voltage:
- 12 V to 24 V DC +30% / -10%
- Max. power consumption:
- < 1.5W
- Output:
- Opto (galvanic isolation - polarity free ) Max. switching voltage:42V AC/DC Max. switching current: 100mA
- Temperature range:
- from -20 °C to + 55 °C
- Dimensions:
- 40.5mm (L) x 36 mm (H) x 36 mm (W)
- Cable length:
- 50cm + 5m cable with connector (optional)
- Degree of protection:
- IP67
