01. Detail Information
상세정보
Product
FLATSCAN-RS510
Category

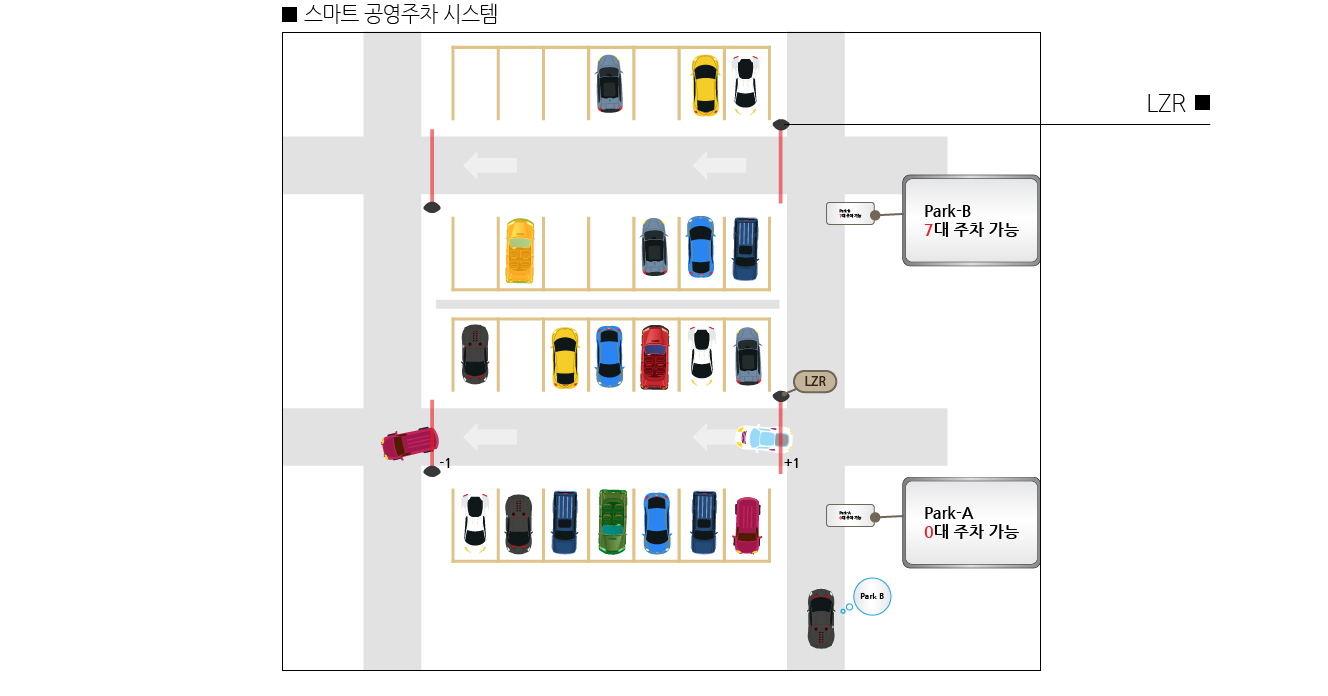

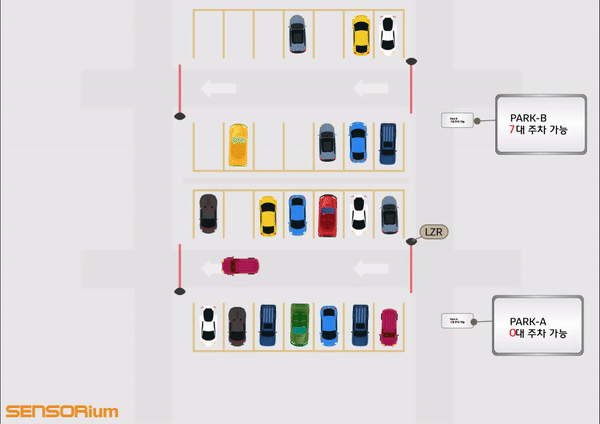

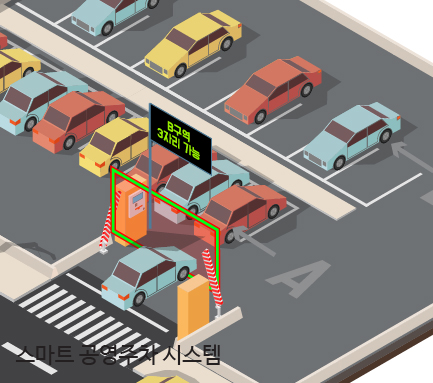

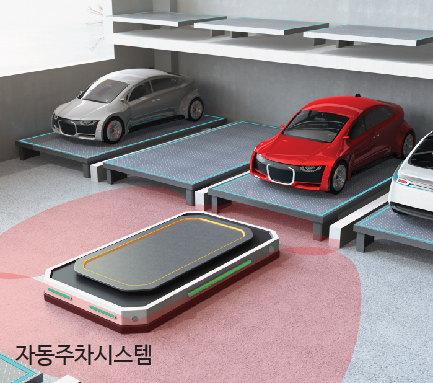

스마트 공영주차 시스템
Type
Sensor Solution

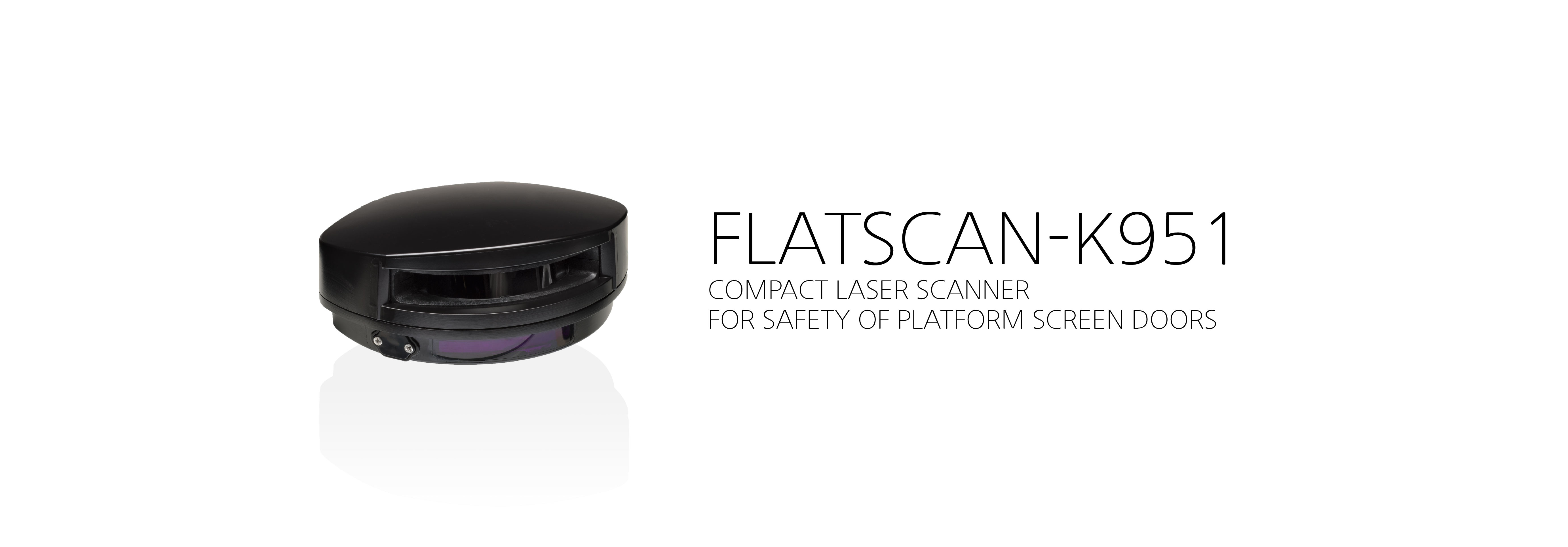

Detail View
제품 상세 이미지
Specification
주요 스펙
- 기술
- LASER scanner, time-of-flight measurement
- 감지모드
- Presence
- 최고감지범위
- max 5.6*5.6 m (4m@5% reflectivity)
- Opening angle
- 90°
- Angular resolution
- 0.23°(400 spots wuthin 90°)
- Testbody
- 700 mm x 300 mm x 200 mm (for your reference)
- Emission characteristics
- Wavelength 905 nm; max. output pulse power 25 W (CLASS 1) Wavelength 650 nm; max. output CW power 3 mW (CLASS 3R) Visible spot
- 공급전압
- 12-24V DC ± 15%
- 소비전력
- ≤ 2.3 W, peak current: 1A
- 응답시간
- max. 50 ms (+ output activation delay)
- 출력
- 1 opto (galvanic isolation - polarity free) Max. switching voltage: 42V AC/DC Max. switching current: 100 mA 1 Relay (free of potential contact) Max contact voltage: 42VAC/DC Max contact current: 1A(resistive) Max switching power: 30W(DC)/60VA(AC)
- LED-signals
- 1 tri-colored LED: detection/output status
- 크기
- 124 mm (L) × 90 mm (H) × 50 mm (D) (without bracket )
- Tilt angles
- ±3° ( with bracket )
- IP등급
- IP66 (EN 60529)
- 허용온도범위
- -30°C to +60°C if powered
- 습도
- 0-95 % non-condensing
- Vibrations
- < 2 G
- Cable length
- FLATSCAN RS510-S : 5m FLATSCAN RS510-M8 : 6m with connector
- Colour
- Black
