01. Detail Information
상세정보
Product

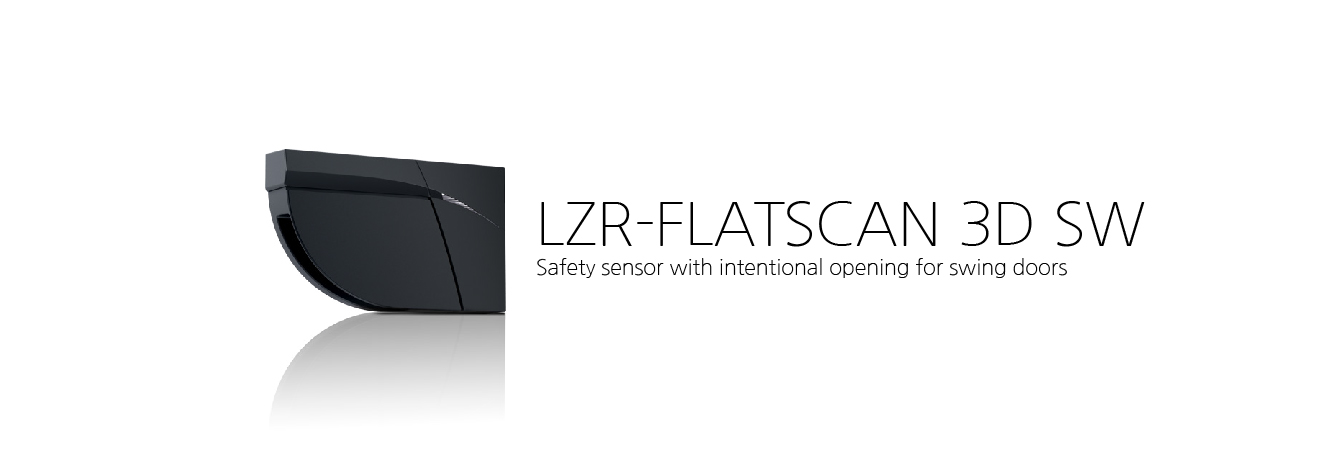

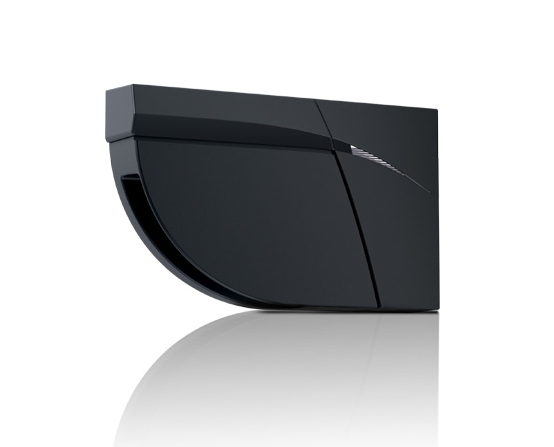

FLATSCAN-SW 3D
Category

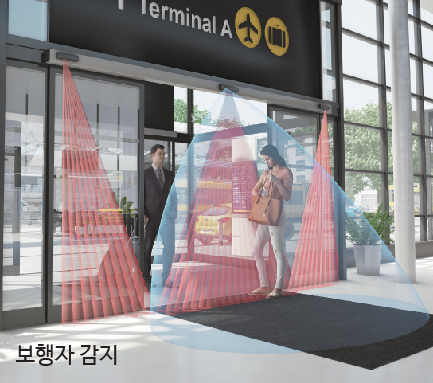

보행자 감지
Type
LASER TECHNOLOGY FOR YOUR DOOR
Detail View

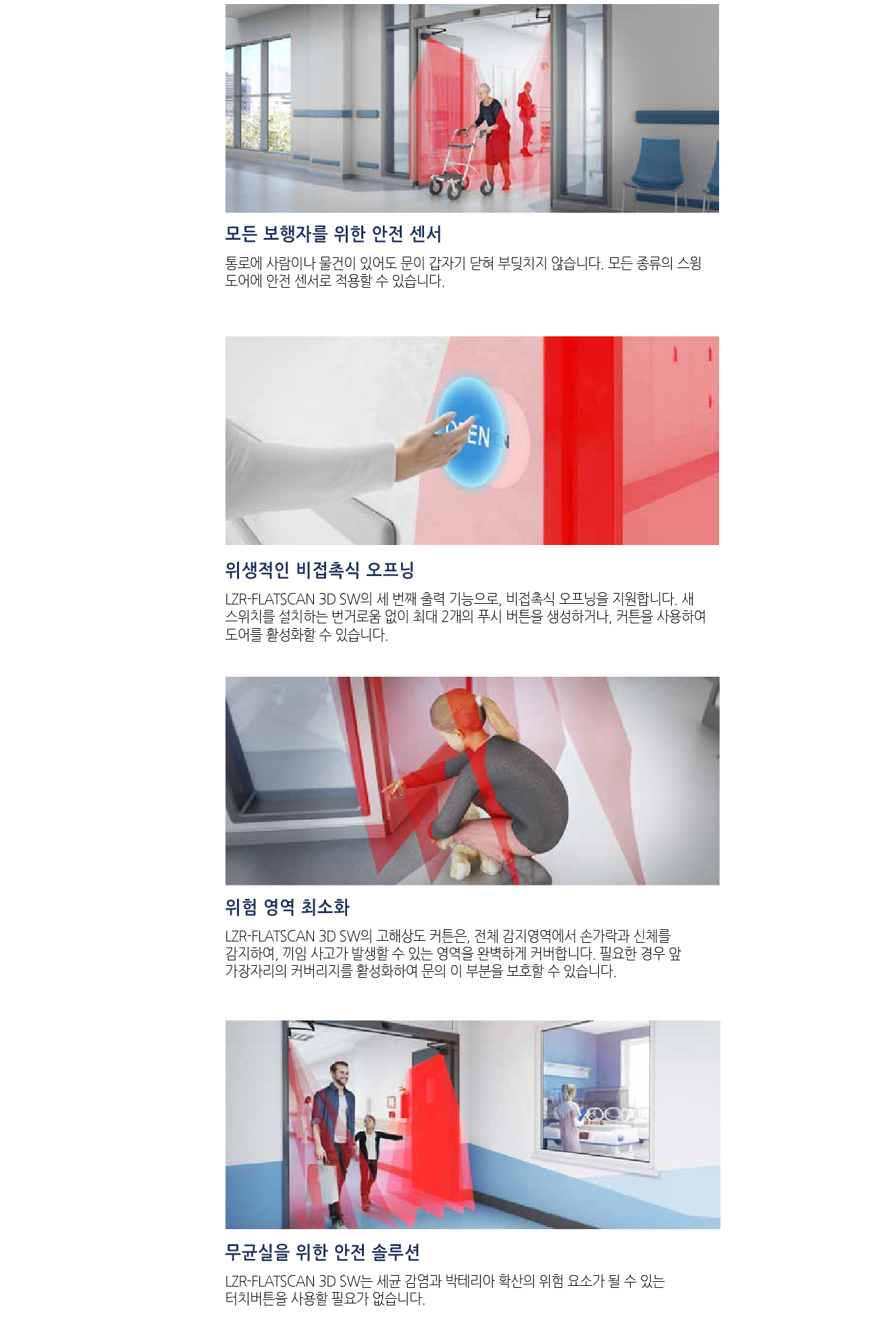

제품 상세 이미지
Specification
주요 스펙
- 기술
- LASER scanner, time-of-flight measurement
- 감지모드
- Presence
- 최대 감지영역
- 4m (diagonal) with reflectivity of 2% (i.e. : at W = 1.5m -> max. H = 3.7m)
- Field of view
- Door wing safety : 80° / Hinge area safety : 20°
- Angular resolution
- Curtain 1 : 0.2° / Curtain 2 : 1° / Curtain 3 : 1.7° / Curtain 4 : 2.5°
- 최소감지물체크기
- 2cm @ 4m in curtain C1
- Testbody
- 700 mm × 300 mm × 200 mm (testbody CA according to EN16005 & DIN18650)
- Emission characteristics
- Wavelength 905 nm; max. output pulse power 25 W; Class 1
- 공급전압
- 12-24V DC ± 15%
- 소비전력
- ≤ 2 W
- 응답시간
- Typ. <120 ms / Max. 220 ms (curtain 2)
- 출력
- 3 electronic relays (galvanic isolation - polarity free) 42 V AC/DC 100 mA
- LED신호
- 1 RGB LED : detection/output status
- 크기
- 145 mm (L) × 88 mm (H) × 60 mm (D) (mounting base + 7 mm)
- 설치각도
- 0° to +5° (without mounting base)
- IP등급
- IP44 (EN 60529)
- 사용가능온도
- -25°C to +60°C
- 습도
- 0-95 % non-condensing
- Vibrations
- < 2 G
- Norm conformity
- EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; IEC 60825-1; EN 60950-1; EN 61000-6-2; EN 61000-6-3; EN 62061 SIL 2; DIN 18650-1 (testbody CA); EN 16005 (testbody CA)
