Product

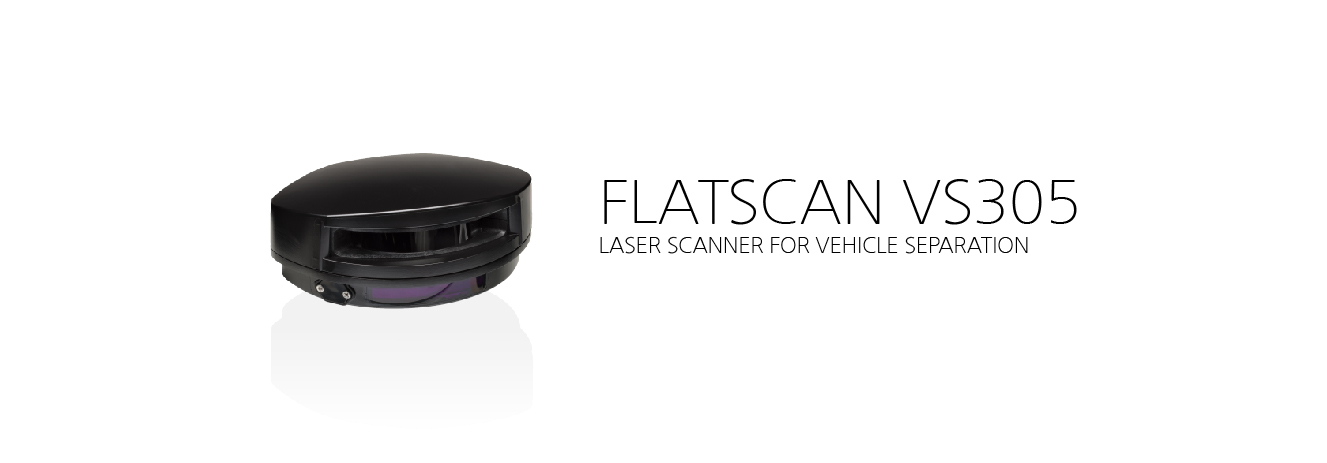

FLATSCAN-VS305
Category

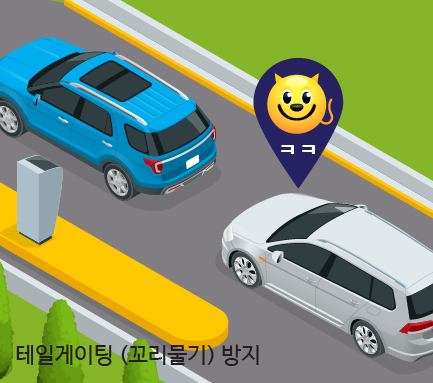

테일게이팅 (꼬리물기) 방지
Type
Sensor Solution
Detail View
제품 상세 이미지
Specification
주요 스펙
- 기술
- LASER scanner, time-of-flight measurement
- 최고감지범위
- Max. 5.5m*5.5m (4m@5% reflectivity)
- Opening angle
- 90°
- Angular resolution
- 0.23° (Max 400 spots within 90°)
- 공급전압
- 12-24V DC ± 15%
- 소비전력
- ≤ 2.3W, peak current: 1A
- 허용온도범위
- -30°C to +60°C if powered
- 습도
- 0-95% non-condensing
- IP등급
- IP66 (EN 60529)
- Vibrations
- < 2G
- 크기
- 124 mm (L) × 90 mm (H) × 50 mm (D) ( without bracket )
- 케이블 길이
- 10m
- Output
- 1 opto (galvanic isolation - polarity free) Max. switching voltage : 42V AC/DC Max. switching current : 100mA 1 Relay (free of potential contact) Max. contact voltage : 42V AC/DC Max. contact current : 1A (resistive) Max. switching power : 30W DC/60VA AC
- LED-signals
- 1 tri-colored LED: detection / output status
- Tilt angles
- ±3° (with bracket)
- Colour
- Black
