01. Detail Information
상세정보
Product

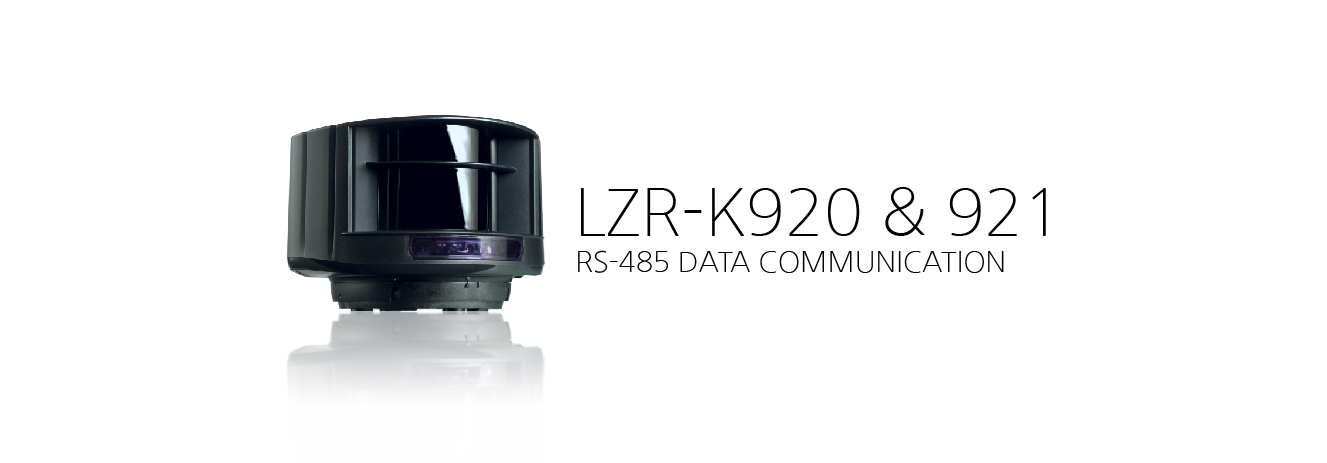

LZR-K920&K921
Category

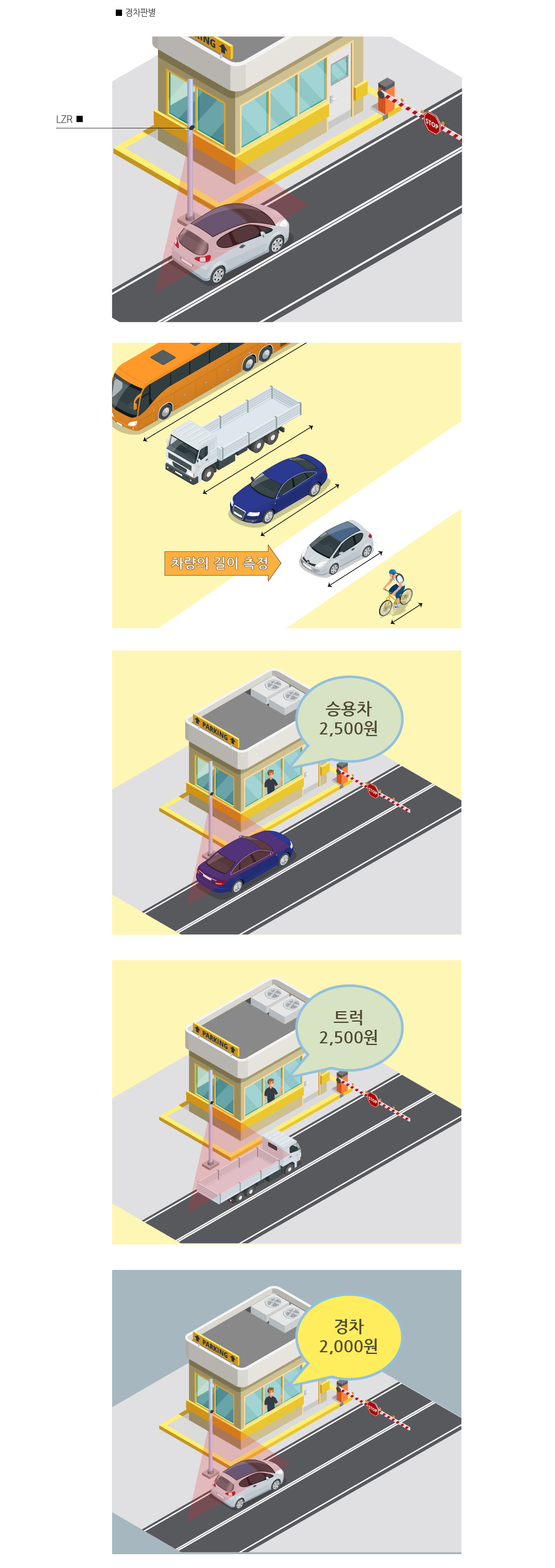

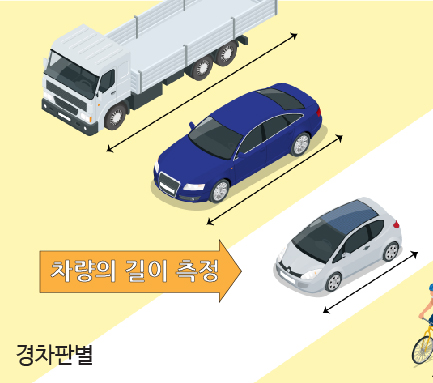

경차판별
Type
THE PREMIUM LASER SCANNER SOLUTION
Detail View
제품 상세 이미지
Specification
주요 스펙
- 기술
- laser scanner, time-of-flight measurement
- 측정범위
- max 65 m 10 m @ 2% remission factor, 30 m @ 10% remission factor
- 면 수
- LZR®-U920: max. 4*; LZR®-U921: 1
- 점 수/면 수
- max. 274*
- 각도 분해능
- min. 0.3516 °*
- 각도범위
- max. 96 °*
- 회전속도
- 900 turns/min
- 스캐닝 빈도
- LZR®-K920: 15 Hz; LZR®-K921: 60 Hz
- Remission factor
- > 2%
- 레이저 방출 특성
- wavelength 905 nm; max. output pulse power 75 W (CLASS 1) wavelength 650 nm; max. output CW power 3 mW (CLASS 3R)
- 공급전압
- 10-35 V DC @ sensor side
- 소비전력
- < 5 W
- 피크전류(전원 켰을때)
- 1.8 A (max. 80 ms @ 35 V)
- 직렬통신
- see AN LZR®-K920/-K921 Protocol (available for download on our website) Type asynchronous Interface RS 485 Communication mode half-duplex Transmission speed 460800 bit/sec (max: 921600 bit/sec) Topology point to point Symbol coding 1 start bit, 1stop bit, no parity bit File type 8 bits
- 외부보호등급
- IP65
- 온도범위
- -30 °C to +60 °C if powered; -10 °C to +60 °C unpowered
- 진동
- < 2 G
- Cable length
- 3 m
- Input
- 1 optocoupler (galvanic isolated - polarity free) 최대허용인가전압 : 30 V DC (over-voltage protected) 전압시단 : Log. H: >8 V DC; Log. L: <3 V DC
- LED-signal
- 2 bi-coloured LEDs: function status; 1 blue LED: power-on status; 1 orange LED: error status
- Dimensions
- 125 mm (D) x 93 mm (W) x 76 mm (H)
- Material
- PC/ASA
- Colour
- black
- Humidity
- 0-95 % non-condensing
- Pollution on front screens
- max. 30 %; homogenous
- Expected lifetime
- 20 years
