01. Detail Information
상세정보
Product

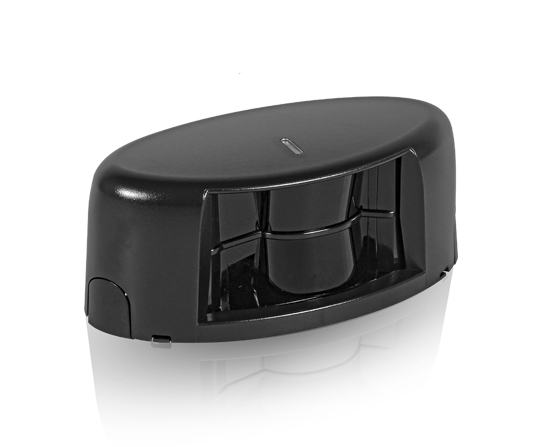

MICROSCAN
Category

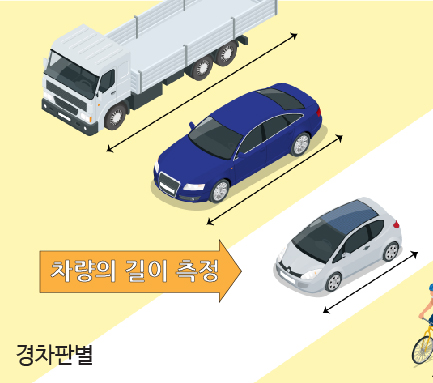

경차판별
Type
THE PREMIUM LASER SCANNER SOLUTION

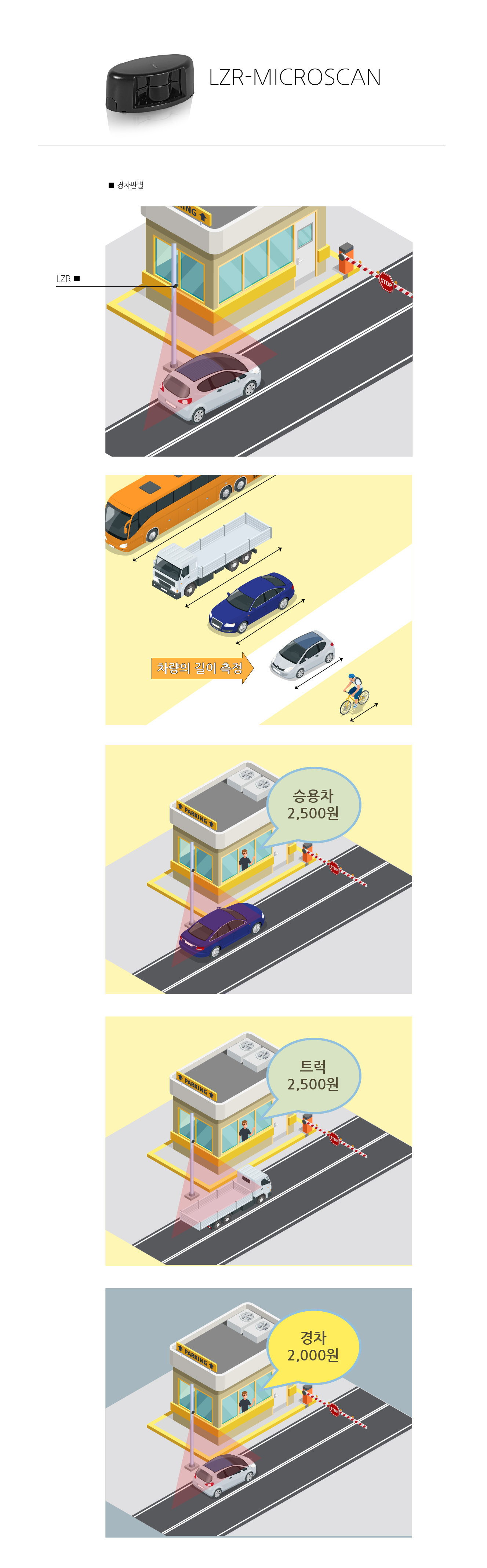

Detail View
제품 상세 이미지
Specification
주요 스펙
- 기술
- laser, time-of-flight measurement
- 감지모드
- presence
- 최대 문 가로 크기
- 48”
- 설치높이
- 6’ 7” - 8’ 2” (for greater heights contact Tech Support)
- Remission factor
- > 2%
- Angular resolution
- 2.56 °
- Testbody
- 28” (H) x 12” (W) x 8” (D) according to UL325
- Emission characteristics: IR laser:
- wavelength 905 nm; max. output pulse power 35 W (CLASS 1)
- 공급전압
- 12-24 VAC +/-5% / 12-30 VDC +/- 10% (15 W Class II)
- 소비전력
- 15 W maximum
- 응답시간
- typ. 40 ms; max. 80 ms
- Output
- 4 electro-mechanic relays (galvanic isolated - polarity free)
- Input
- 2 optocouplers (galvanic isolated - polarity free)
- Test Input
- 8-15 VDC
- 사용가능온도범위
- - 13˚F to +12↑F (-25˚C to +55˚C)
- Degree of Protection
- Hub - IP20/NEMA 1 Sensor - IP53/NEMA 3
- 습도
- 0-95 % non-condensing
- Vibrations
- < 2 G
- Material
- PC/ASA
- Norm Conformity
- EN 60825-1-Eye-safety class 1 IR laser (905 nm), UL325, UL6730
- Mounting agnle (rotational)
- 35° 고정
- 설치각도
- 0° to 5 ﾠ ﾠ ﾠ ﾠ ﾠ ﾠ 5˚ contact Tech Support)
- Pollution on front screens
- max. 30 %; homogenous
