01. Detail Information
상세정보

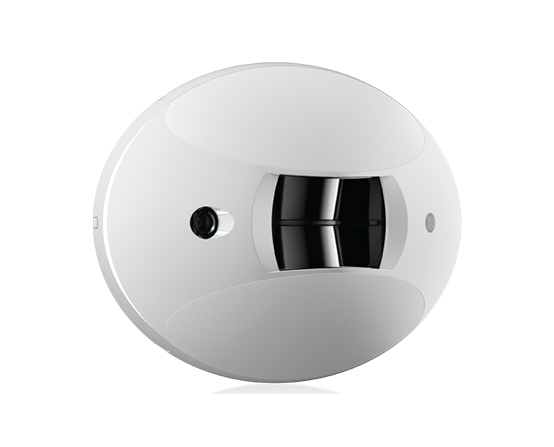

Product

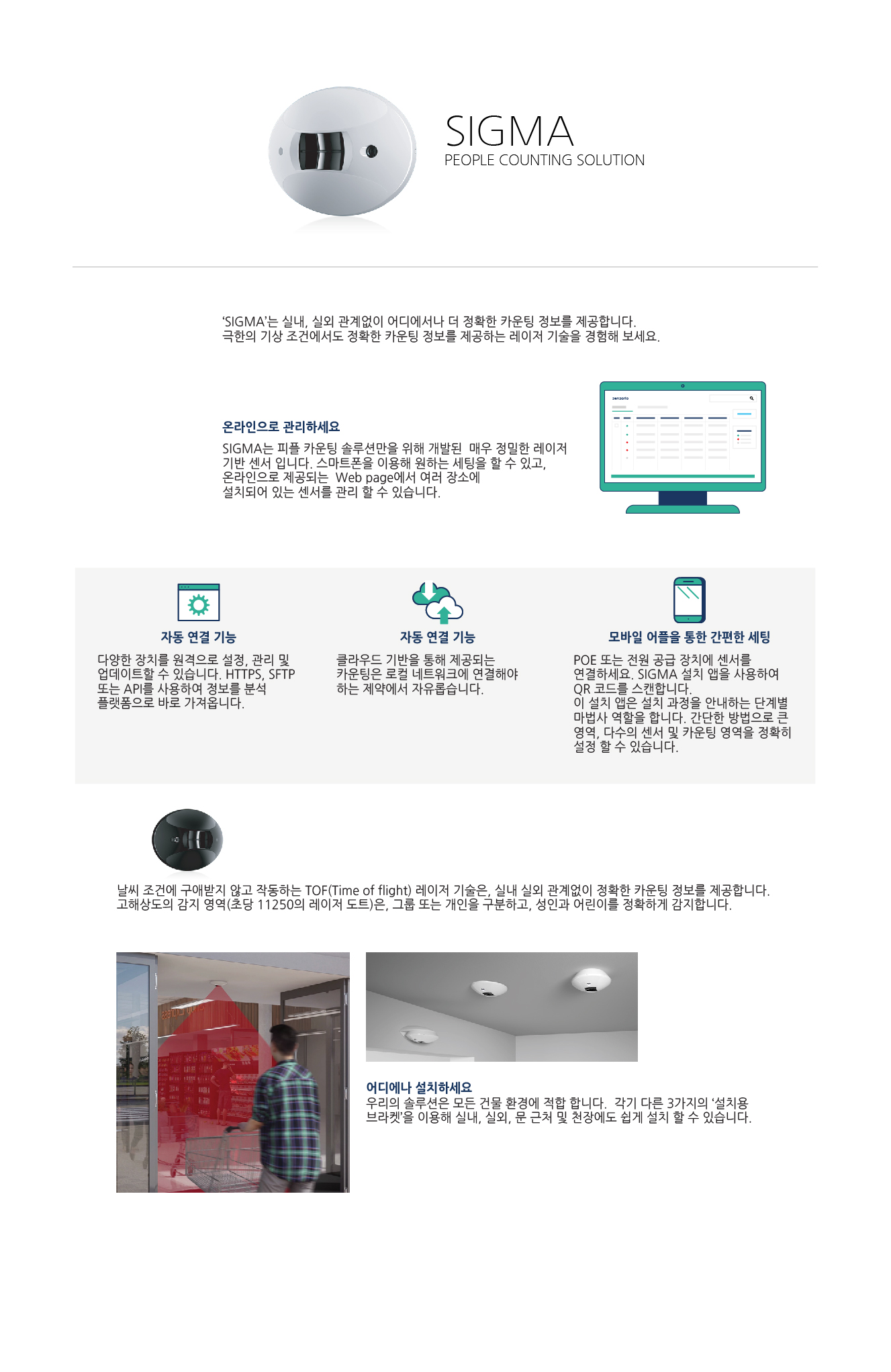

SIGMA
Category

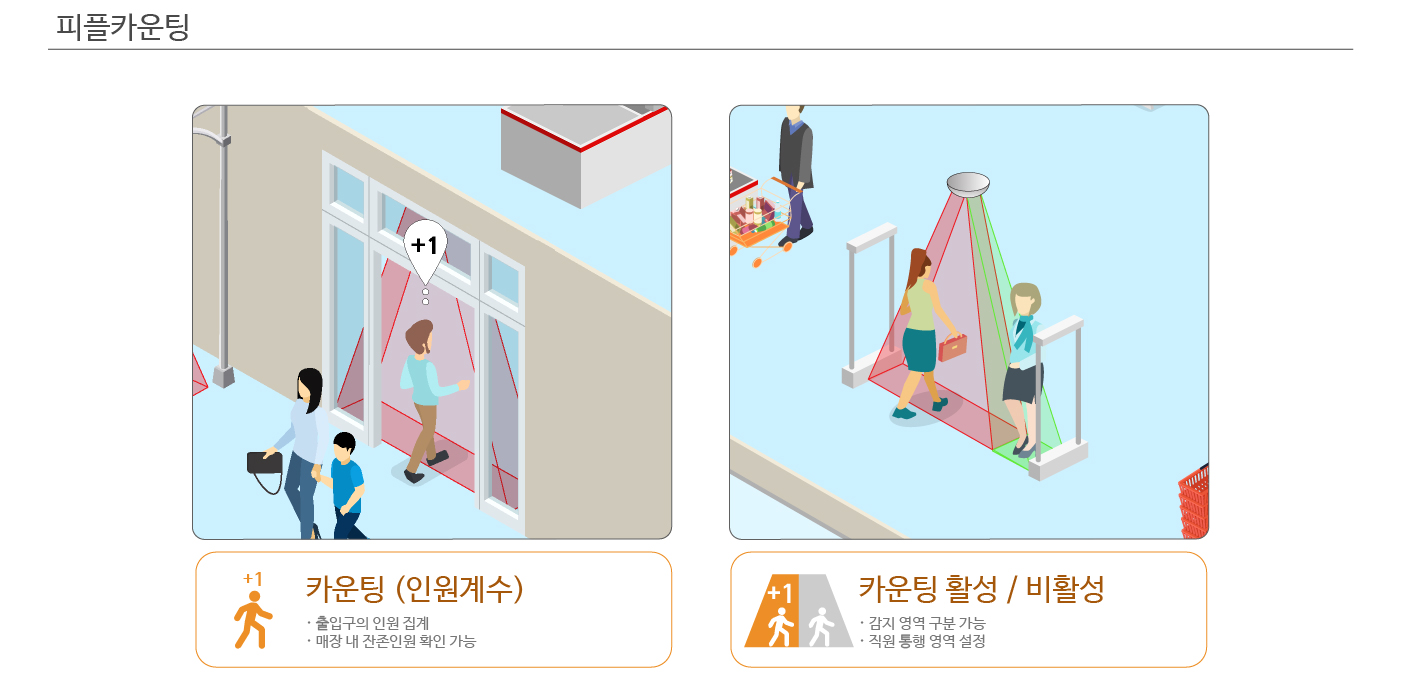

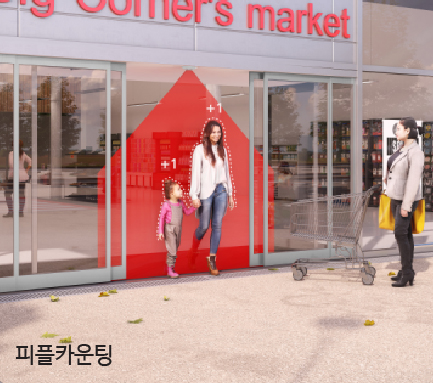

피플카운팅
Type
Sensor Solution

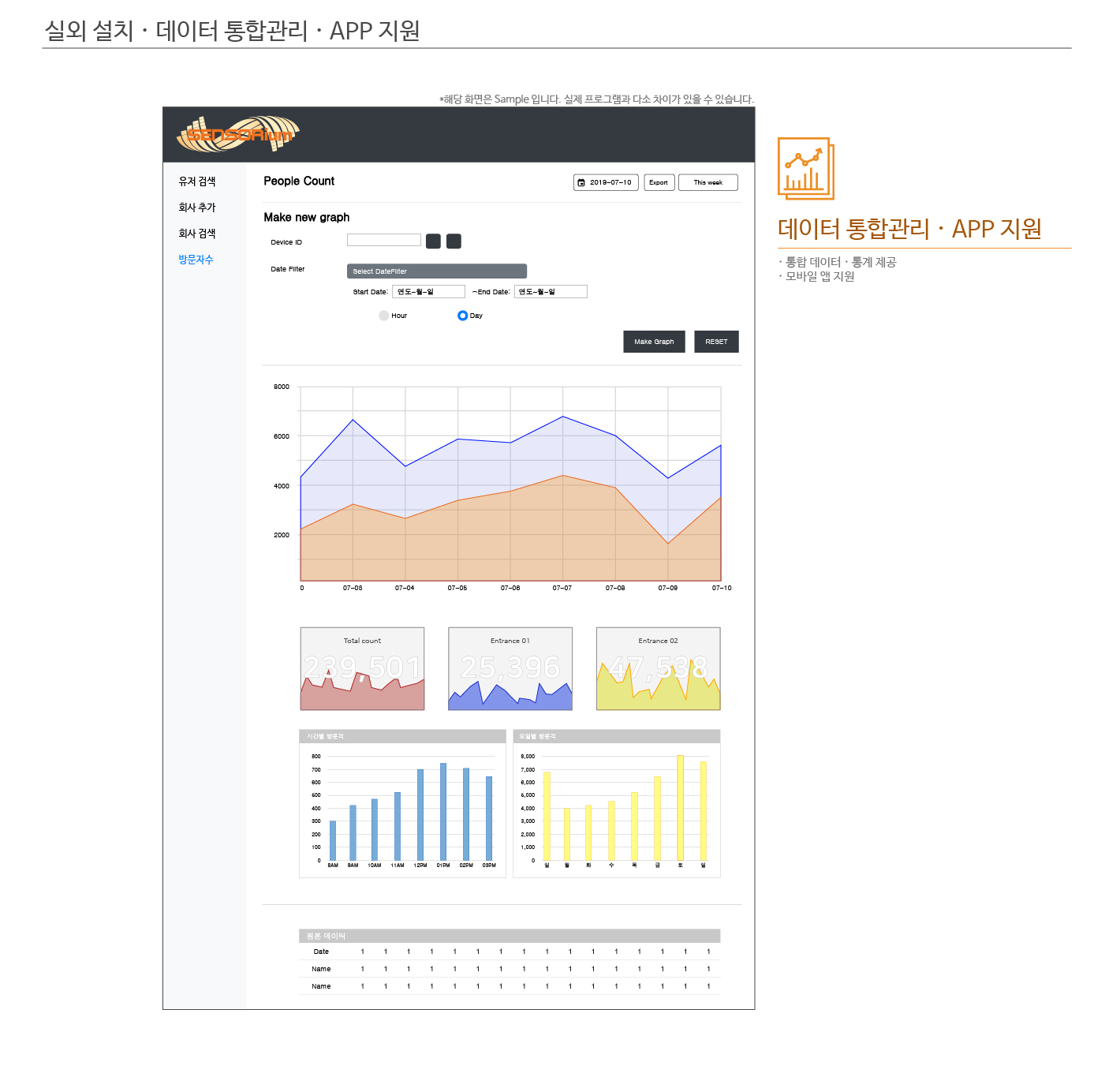

Detail View
제품 상세 이미지
Specification
주요 스펙
- Technology
- LASER scanner, time-of-flight measurement
- Emission characteristics IR LASER
- Wavelength 905 nm; max. output pulse power 0.05 mW; Class 1 (EN 60825)
- Device dimensions
- 200 mm [L] × 142 mm [W] × 61 mm [H] (elliptical) (if mounted with ceiling accessory : visible height 37 mm, invisible height 65 mm)
- Temperature range
- -25°C to 55°C if powered (storage temperature -35°C to 70°C)
- Humidity
- 0-95% non-condensing
- Power
- 24 VDC ± 10% External DC power or PoE (IEEE802.3af) Power consumption Max. 12 W/Peak - Average 6 W
- Data transfer
- 3G/2G cellular, Ethernet (cable cat. 5/6)
- Installation height
- 2 m to 5.5 m
- Counting width coverage
- ratio [0.8 - 1.35] depending on mounting height (cf. sizer tool : www.meetsigma.io/sizer)
- Ports
- MQTTS 8883 / HTTPS 443 / SFTP 22
- Video validation
- Resolution 160px × 120px, frame rate 15 fps (for counting proof purpose only
- Counting data refresh rate
- 1 min. to 24h
